impression FR1 Trackmount

SKU:
7687
Availability:
Ships from manufacturer. Typically ships within 1-2 days
$1,499.25
$1,999.00
(You save $499.75 )

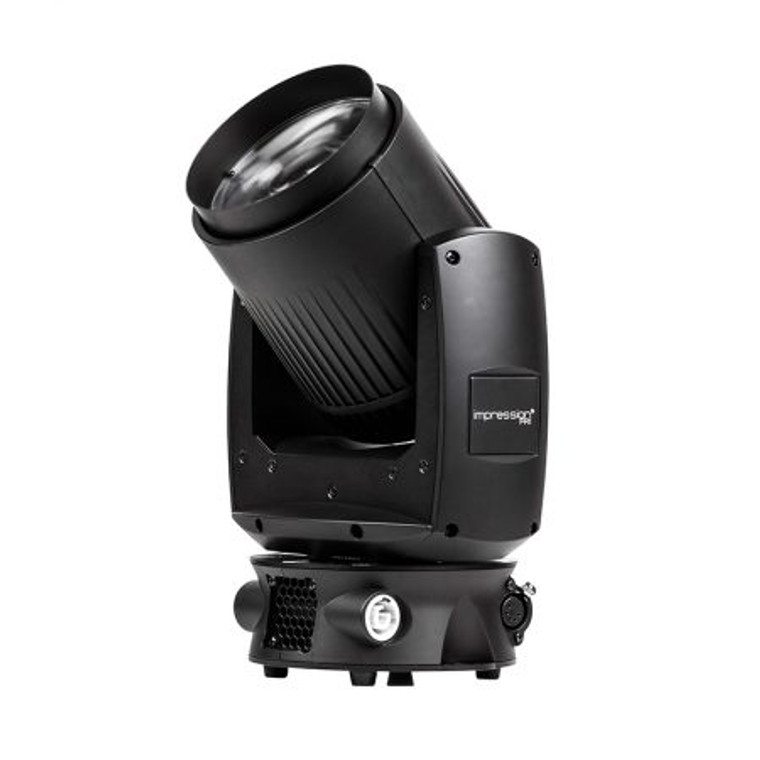

The GLP impression FR1 brings a powerful new level of versatility and quality with one of the most compact automated lighting packages available today. Using a single, high powered 60 Watt homogenized RGBW LED at its core, the impression FR1 features color mixing across a vast spectrum, whilst at the same time can project a crisp, punchy white light, with a full range of color temperature control.



Optical quality is at the forefront with the FR1 as it provides a clean, homogenized output at all angles, always giving a clean beam from center to its extreme edge. This consistency and attention to detail allows the FR1 to be used in a large range of applications where compromise is not an option.

A super fast 3.5° to 35° zoom range gives full beam control over both short and longer throw distances and because of its power, the FR1 can project over a long throw.

With quality comes accuracy, and in this area the FR1 features 16 bit dimming and 16 bit position control through a range of 540° of pan and 220° of tilt. But with an added kick, the FR1 also has the ability of bi-directional continuous pan rotation at varying speeds from slow and gentle, to extremely fast giving that little something extra when needed.

A variety of dimmer curve options, along with a full PWM range and other settings are available from the on board menu with critical functions also available to control via the DMX signal.

The GLP trademark baseless design features on the FR1, and offers power in and thru connectors for ease of setting up multiple units. The base also features rubber feet for floor mounting, threaded sockets for coupler attachments and in built safety wire points.

From lighting art to centerpieces, from exquisite costumes to close up displays, the impression FR1 offers an outstanding combination of quality, power, size and ability, and with a little kick of fun when that matters too.



Light Source

  • 60W RGBW Osram Ostar LED
  • 50,000h
  • CRI 80
  • TLCI: 80
  • TM30-15: 77/106

Optical System

  • Focused octagon beams with very narrow 5°

  • Fast 1:10 zoom with a flat field wash of 35°

Shutter / Dimmer

  • Flicker free operation with flexible PWM
  • Smooth electronic dimming from 0-100% different dimming curves
  • Variable electronic strobe 1-10Hz
  • Pulse and random effects

Movement

  • 540° continuous pan rotation
  • 220° tilt
  • 16 bit resolution and position feedback

Control

  • DMX-5pin
  • Back lit high contrast graphic LCD menu
  • Over temperature protection
  • 16 DMX channels

Effects

  • Virtual color wheel match referenced LEE colors
  • Color temperature control, 2,500 K – 10,000 K

Control

  • Display
    • Illuminated high contrast graphic LCD
  • Protocol
    • DMX-512

Power Supply

  • PowerCON in/out.
  • Mains voltage 100-240 VAC/50-60Hz
  • Variable PWM

Connectors

  • DMX data
    • XLR 5-pin in/out
  • Mains power
    •   Neutrik PowerCON in/out.

Operating Conditions

  • IP 20 rated
  • Maximum ambient temperature: 104°F  (40°C)

Mounting Options

  • Three M10 threads
  • Two safety wire attachment on both sides

Shipping

  • Cardboard box
  • 8 way flight case available
  • 12 way flight case available

Housing Colors

  • Standard color: black
  • Optional: special colors on request

Dimensions

  • (L x W x H): head vertical
    • 7.6″ x 5.5″ x 14″ (19.5 cm x 14 cm x 35.5 cm)

Weight

  • Weight: 8.8 lbs (4 kg)
