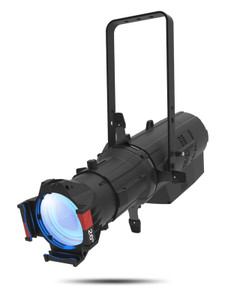

Ovation E-260CW

SKU:
OvationE260CW
Availability:
Ships from manufacturer. Typically ships within 1-2 days
$1,500.00
$1,691.73
(You save $191.73 )

Ovation E-260CW is powered by a single source 230 W LED that exceeds the output of a 750 W tungsten light source. This cool white ERS-style fixture boasts extremely smooth dimming down to the very bottom of the curve as well as a flat and even field of light for superior gobo projection. Control options like selectable PWM, RDM, and selectable dimming curves round out this virtually silent ellipsoidal.



OPTICAL

  • Light Source: 1 LED (WW) 230 W, (3.6 A), 3149 K, 50,000 hours life expectancy; (CW) 198 W, (3.5 A), 5452 K, 50,000 hours life expectancy
  • Color Temperature (at full): (WW) 3149 K; (CW) 5452 K
  • CRI: (WW) 96; (CW) 96
  • Beam Angle (w/14° lens): 11°
  • Beam Angle (w/19° lens): 13°
  • Beam Angle (w/26° lens): 16°
  • Beam Angle (w/36° lens): 20°
  • Beam Angle (w/50° lens): 28°
  • Beam Angle (w/15°–30° lens)(Narrow): 12°
  • Beam Angle (w/15°–30° lens)(Wide): 14°
  • Beam Angle (w/25°–50° lens)(Narrow): 21°
  • Beam Angle (w/25°–50° lens)(Wide): 22°
  • Field Angle (w/14° lens): 14°
  • Field Angle (w/19° lens): 18°
  • Field Angle (w/26° lens): 25°
  • Field Angle (w/36° lens): 34°
  • Field Angle (w/50° lens): 50°
  • Field Angle (w/15°–30° lens)(Narrow): 15°
  • Field Angle (w/15°–30° lens)(Wide): 29°
  • Field Angle (w/25°–50° lens)(Narrow): 26°
  • Field Angle (w/25°–50° lens)(Wide): 46°
  • Dimming Modes: 4
  • Lumens (w/19° lens): (WW) 7,587; (CW) 9,530
  • Lumens (w/26° lens): (WW) 10,284; (CW) 13,368
  • Lumens (w/36° lens): (WW) 10,121; (CW) 13,184
  • Lumens (w/50° lens): (WW) 9,655; (CW) 12,672
  • Illuminance (w/14° lens): (WW) 13,439 lux @ 5 m; (CW) 16,787 lux @ 5 m
  • Illuminance (w/19° lens): (WW) 9,256 lux @ 5 m; (CW) 10,674 lux @ 5 m
  • Illuminance (w/26° lens): (WW) 6,910 lux @ 5 m; (CW) 8652 lux @ 5 m
  • Illuminance (w/36° lens): (WW)4,053 lux @ 5 m; (CW) 5185 lux @ 5 m
  • Illuminance (w/50° lens): (WW)1,703 lux @ 5 m; (CW) 2181 lux @ 5 m
  • Illuminance (w/15°–30° lens)(Narrow): (WW) 16,827 lux @ 5 m ; (CW) 19,900 lux @ 5 m
  • Illuminance (w/15°–30° lens)(Wide): (WW) 10,626 lux @ 5 m; (CW) 10,159 lux @ 5 m
  • Illuminance (w/25°–50° lens)(Narrow): (WW) 7,210 lux @ 5 m; (CW) 9,219 lux @ 5 m
  • Illuminance (w/25°–50° lens)(Wide): (WW) 3,295 lux @ 5 m; (CW) 3,468 lux @ 5 m
  • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

DYNAMIC EFFECTS

  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Zoom: Manual
  • Strobe Rate: (WW) 0 to 27 Hz; (CW) 0 to 30 Hz
  • Dim Modes: 4
  • Built-in Automated Programs: Yes
  • Color Temperature Presets: (CW) No

CONSTRUCTION / PHYSICAL

  • Dimensions (fixture only): 19.49 x 11.22 x 19.17 in (495 x 285 x 487 mm)
  • Dimensions (w/14° lens extended): 28.74 x 11.22 x 19.17 in (730 x 285 x 487 mm)
  • Dimensions (w/26° lens extended): 25.91 x 11.22 x 19.17 in (658 x 285 x 487 mm)
  • Dimensions (w/15°–30° lens): 32.87 x 14.61 x 14.61 in (835 x 371 x 371 mm)
  • Dimensions (w/25°–50° lens): 27.17 x 14.61 x 14.61 in (690 x 371 x 371 mm)
  • Weight (fixture only): 15.4 lb (7 kg)
  • Weight (w/14° lens): 20.8 lb (9.43 kg)
  • Weight (w/26° lens): 19.4 lb (8.80 kg)
  • Weight (w/15°–30° lens): 29.4 lb (13.34 kg)
  • Weight (w/25°–50° lens): 27 lb (12.25 kg)
  • Exterior Color: Black
  • Gobo Size (Optional): “A”: 100 mm (outside), 75 mm (image), 2.5 mm (max. thickness)
  • Gobo Size (Optional): “B”: 86 mm (outside), 64.5 mm (image), 2.5 mm (max. thickness)
  • Accessory Holder/Gel Frame Size (14° lens): 7.5 in (191 mm)
  • Accessory Holder/Gel Frame Size (19°, 26°, 36°, and 50° lens): 6.25 in (159 mm)
  • Accessory Holder/Gel Frame Size (15°–30° lens): 7.5 in (191 mm)
  • Accessory Holder/Gel Frame Size (25°–50° lens): 7.5 in (191 mm)

CONNECTIONS

  • Power Connection: Edison (Local) plug to Neutrik powerCON
  • Power Input: Neutrik powerCON
  • Power Output: Neutrik powerCON
  • Data Connectors: 3- and 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)

CONTROL

  • Control Protocol: (WW) DMX; (CW) DMX, RDM
  • DMX Channels: 1, 2, 3 or 6
  • Modes/Personalities: 4 personalities (1, 2, 3, 6)

ELECTRICAL

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: (WW) 8 units @ 120 V; 13 units @ 208 V; 14 units @ 230 V; (CW) 7 units @ 120 V; 12 units @ 208 V; 13 units @ 230 V
  • Power and Current: (WW) 209 W, 1.7 A @ 120 V, 60 Hz; (CW) 225 W, 1.86 A @ 120 V, 60 Hz
  • Power and Current: (WW) 206 W, 1.0 A @ 208 V, 60 Hz; (CW) 234 W, 1.12 A @ 208 V, 60 Hz
  • Power and Current: (WW) 204 W, 1.0 A @ 230 V, 50 Hz; (CW) 233 W, 1.02 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

  • CE, MET, FCC
  • IP Rating: IP20, dry location

WHAT'S INCLUDED

  • Ovation E-260WW/Ovation E-260CW
  • Neutrik powerCON power cord
