COLORado 1-Quad

SKU:
COLORADO1-QUAD
Availability:
Ships from manufacturer. Typically ships within 1-2 days
$555.00
$624.06
(You save $69.06 )

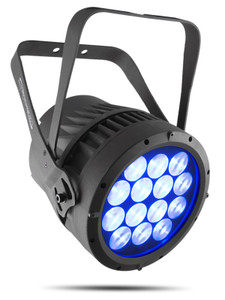

COLORado 1 Quad is an excellent indoor/outdoor robust wash light with 14 5 W RGBW LEDs that deliver big power from a compact, yet solid IP65 housing. A 13° beam angle gives you ample control over the beam and selectable dimming curves facilitate the integration of the fixtures into existing rigs.  And outdoor rated power and data connectors allow for easy connections without propriety cabling.



OPTICAL

  • Light Source: 14 LEDs (quad-color RGBW) 5 W, (350 mA), 50,000 hours life expectancy.
  • Color Temperature (range): 2800 to 10,000 K
  • Beam Angle: 13°
  • Field Angle: 26°
  • Lumens: 1,633
  • Illuminance (total): 1510 lux @ 5 m

DYNAMIC EFFECTS

  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Strobe Rate: 0 to 14 Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Modes: 5
  • Dim Curves: 4
  • Built-in Automated Programs: Yes
  • Customizable Programs: Yes
  • Recall Custom Programs: Yes

CONSTRUCTION / PHYSICAL

  • Dimensions: 11.96 x 9.96 x 7.95 in (304 x 246 x 202mm)
  • Weight: 9.8 lb (4.5 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum die-cast
  • Accessory Holder/Gel Frame Size: 7.5 in (191 mm)

CONNECTIONS

  • Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
  • Power Input: Seetronic Powerkon IP65
  • Power Output: Seetronic Powerkon IP65
  • Data Connectors: 5-pin IP65 XLR
  • Cable Length (power): 5 ft (1.5 m)

CONTROL

  • Control Protocol:DMX, RDM
  • DMX Channels: 4, 5, 6, 7, 9, 10, 13 or 15
  • Modes/Personalities (RGB): 3 personalities (TOUR, TR16, AR1.D)
  • Modes/personalities (RGBW): 6 personalities (ARC.2, AR2.D, AR2.S, SSP, 16Bit, 8Bit)

ELECTRICAL

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 15 units @ 120 V; 25 units @ 208 V; 27 units @ 230 V
  • Power and Current: 109 W, 0.892 A @ 120 V, 60 Hz
  • Power and Current: 110 W, 0.529 A @ 208 V, 60 Hz
  • Power and Current: 112 W, 0.492 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

  • CE, MET
  • IP Rating: IP65, outdoor/wet, with pressure equalizing M12 GORE valve
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

WHAT'S INCLUDED

  • COLORado 1 Quad
  • Seetronic Powerkon IP65 power cord
  • Gel frame holder (7.5 in/191 mm accessories)
