PERFORMANCE
Rated Power: 700W
Max Output: 4,000 CFM* (cu ft/min.) (113 m3/min*)
Ready Time: Initial = 6 Minutes*
Fluid Capacity: 0.345 gallons (1.3 liters)
Fluid Consumption: 0.115 oz/min (3.4 ml/min)
*approximate
COMPATIBLE FLUID

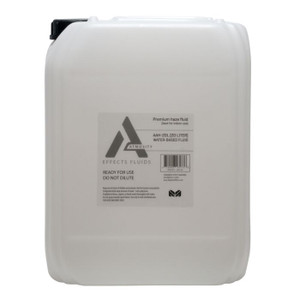

Atmosity Extreme Filtered Fog Fluid (AEF-4L)
CONSTRUCTION
Thermally Protected Heat Exchanger
Advanced HPA (high pressure air) Pump Technology
Energy Saving Mode with Auto-Clean Process
Sealed Fluid Reservoir
External Visual Fluid Level Detection
Compact Light Weight Mobile Design
CONTROL
3 DMX Channel Modes (1 / 3 / 5)
Onboard LCD Touch Control Panel
DMX-512 and RDM Protocol Support
Optional E-FLY Wireless DMX Transceiver
Optional RF Wireless and Wired Remotes
CONNECTIONS
Locking 5pin XLR Connector In/Out
IP65 Locking Power Connector In
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 13.3 in. (356mm)
Width: 6.29 in. (160mm)
Height: 15.91 in. (404mm)
Weight: 22.48 lbs. (10.2kg)
ELECTRICAL
AC 100-120V - 50/60Hz
9A (NFB)
Max Power Consumption: 720W
THERMAL
Maximum Ambient Temperature (Ta max) 104°F (40°C)
Exterior Surface Temperature, Steady State: 122°F (50°C)
APPROVALS / RATINGS
CE | cETLus (pending) | IP20
