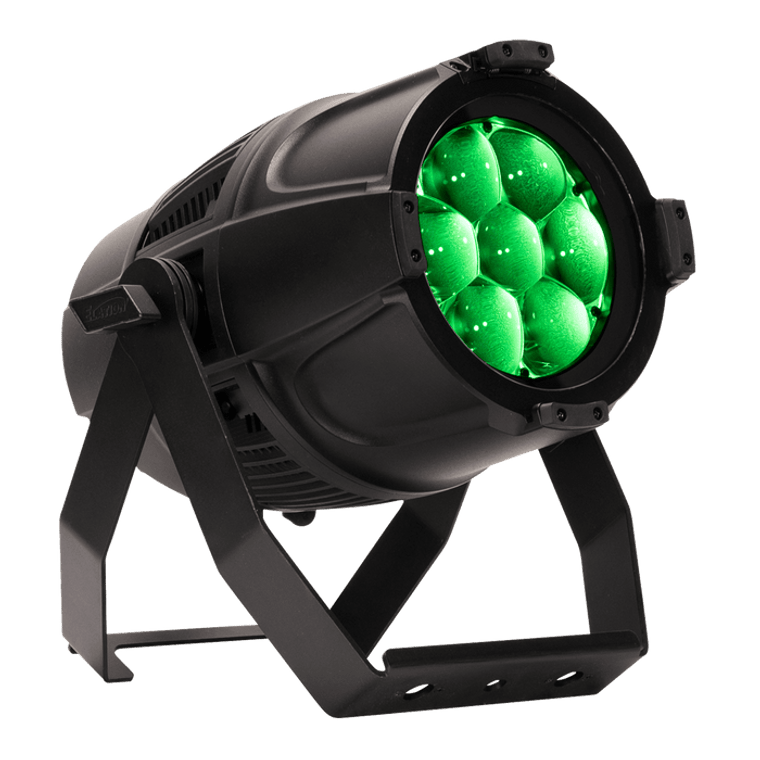

Limelight Par S
Elation Professional
$1,366.00
$1,498.00
(You save
$132.00
)
LIMELIGHT PAR S
Compact and vibrant, the LIMELIGHT PAR S features 7 × 60W RGBL LEDs, delivering up to 5,345 lumens of vivid color and high fidelity whites. Its 5°–42° motorized zoom and dual-zone control allow precise beam shaping—from tight spots to smooth washes. Rugged IP65 construction ensures it thrives in any environment, while CMY emulation, variable CCT, and gel-matched presets give designers the freedom to craft every shade and highlight exactly as they envision.
(7) 60W RGBL LED Array
5,345 Total Fixture Lumen Output (Sphere)
5°- 42° Beam Angle
Smooth 16-bit Selectable Dimming Modes and Curves
Remote LED Refresh Rate
Flicker Free Operation for TV and Film
7.5” Accessory Holder
IP65 Rated
5,345 Total Fixture Lumen Output (Sphere)
5°- 42° Beam Angle
Smooth 16-bit Selectable Dimming Modes and Curves
Remote LED Refresh Rate
Flicker Free Operation for TV and Film
7.5” Accessory Holder
IP65 Rated
Specifications
SOURCE
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
(7) 60W RGBL LEDs
30,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
PHOTOMETRIC DATA
Total Lumen Output
5,345 (Integrating Sphere)
4,844 (Goniometer)
CRI 82.8
TLCI 74
Zoom Range 5° - 42°
Beam Angle: 5° - 42°
Field Angle: 8° - 60°
EFFECTS
Dual Zone LED Control
Electronic Dimmer and Strobe
Variable 16-bit Dimming Modes and Curves
COLOR
RGBL Color Array
CMY Emulation
Variable CCT 2400K - 8500K
Virtual Gel Swatch Book
CONTROL / CONNECTIONS
7 DMX Channel Modes (4ch/12ch/15ch/13ch/17ch/17ch/25ch)
Manual and DMX Controlled Dimmer and Color
4 Button Control Panel, LED Display
Aria x2 Wireless Device Management
RDM (Remote Device Management)
5pin DMX and IP65 Locking Power Cable In/Out
SIZE / WEIGHT
Length: 12.5" (317mm)
Width: 8.8” (224mm)
Vertical Height: 16.7” (423mm)
Weight: 20.1lbs. (9.1kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
332W Max Power Consumption
Power Thru Capacity: 11A (3 units @110V; 7 units @240V)
5°F to 113°F (-15°C to 45°C)
1132.8 BTU/hr (+/- 10%)
INCLUDED ITEMS
IP65 Locking Power Cable
Safety Cable
OPTIONAL ITEMS
7.5" Gel Frame
7.5" Barndoor (KLP959)
# 8050000053 - Omega Bracket
APPROVALS / RATINGS
CE | cETLus | IP65 | FCC | UKCA
Specifications and documentation subject to change without notice.
Manufacturers Warranty
