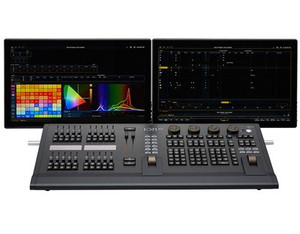

The Ion® Xe is the compact workhorse of the Eos® family. Featuring the same backlit keyboard layout and full-feature software as its bigger siblings, this little desk brings professional programming power to any venue. Ion Xe can integrate into a system with all other Eos family products (except Element), and you can transition between desks with ease.
The Ion Xe is available in either 2,048 or 12,288 outputs, and provides support for up to two external monitors. The master playback faders can be supplemented with virtual faders or a variety of other options.
*Monitors shown for illustration only.
S P E C I F I C A T I O N S
SYSTEM CAPACITY
- 2,048 or 12,288 outputs
- 32,768 Channels (mapped to any number between 1 and 99,999
- 10,000 Cues
- 999 Cue Lists
- 999 Submasters
- 4 x 1000 palettes (Intensity, Focus, Color, Beam)
- 1000 presets (all palette)
- 1000 Groups
- 1000 Effects (relative, absolute or step)
- 99,999 Macros
- 1000 Snapshots
- 1000 Curves
- 1000 Color paths
- Supports a maximum of two external display port monitors at 1280x1024 minimum resolution or multi-touch screen control
- Solid-state hard drive
- Five USB ports for flash drives, pointing devices, keyboards
INTERFACES
- Four DMX-512 / RDM ports
- Ethernet (ETCNet2™, Net3™,Artnet and Avab UDP output protocols)
- Contact Closure triggers via D-Sub connector
- Two Display port connectors support two external displays with optional touch- or multi-touch screen control
- MIDI Timecode, Notes, Show Control through Gateway
- SMPTE Timecode through Gateway
- Additional contact closure (12 analog inputs, 12 SpDT contact outputs, RS-232) through Gateway
- OSC Transmit and Receive
- UDP Transmit and Receive
